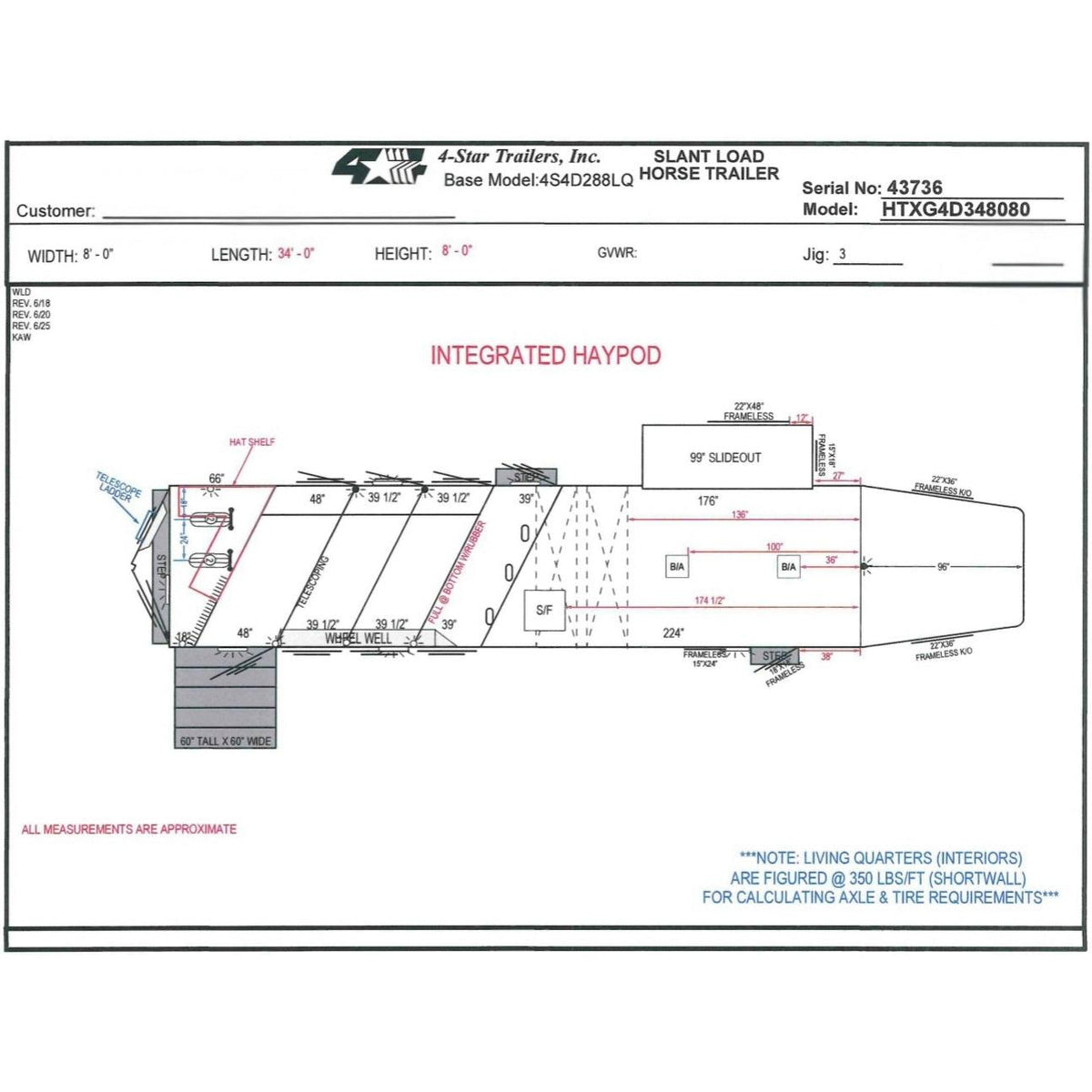

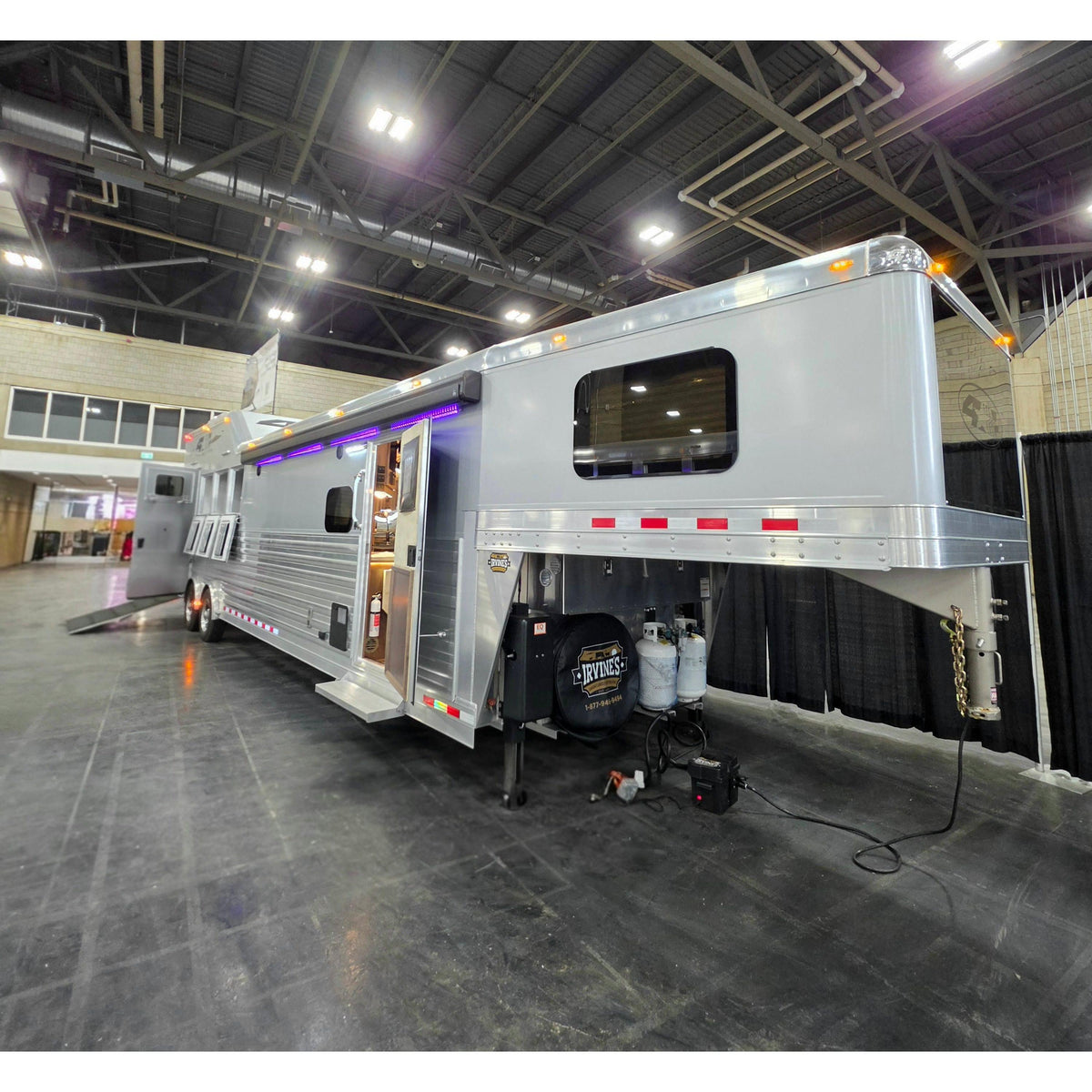

2027 4-Star 34' 4-Horse LQ by Trail Boss

Silver Metallic - 43736

8' Tall

8' Wide

2 5/16" Adjustable Coupler - Shorten Coupler to 18"

96" Gooseneck w/ Reinforcement

Dual Leg Hydraulic (Equalizer) Jacks w/ Double Aluminum Battery Box & Wired Up

Stainless Steel Nose w/ Polished Corner Caps

Pre-Painted Silver Metallic Exterior on Smooth Aluminum

12" Tapered Gooseneck w/ 22" x 36" Frameless Kickout Windows Centered Vertically

Insulate & Line Horse Compartment & Rear Tack

Double 50/50 Rear Doors w/ Windows w/ Full Width Fold Down Step

(1) 26 1/2" Clear Door w/ Window @ Curbside to start 38" B.O.D.

(1) Walk-Thru Door w/ Drop Down w/ Window & Drop Down Window Bars Streetside @ Bulkhead w/ Fold Down Step

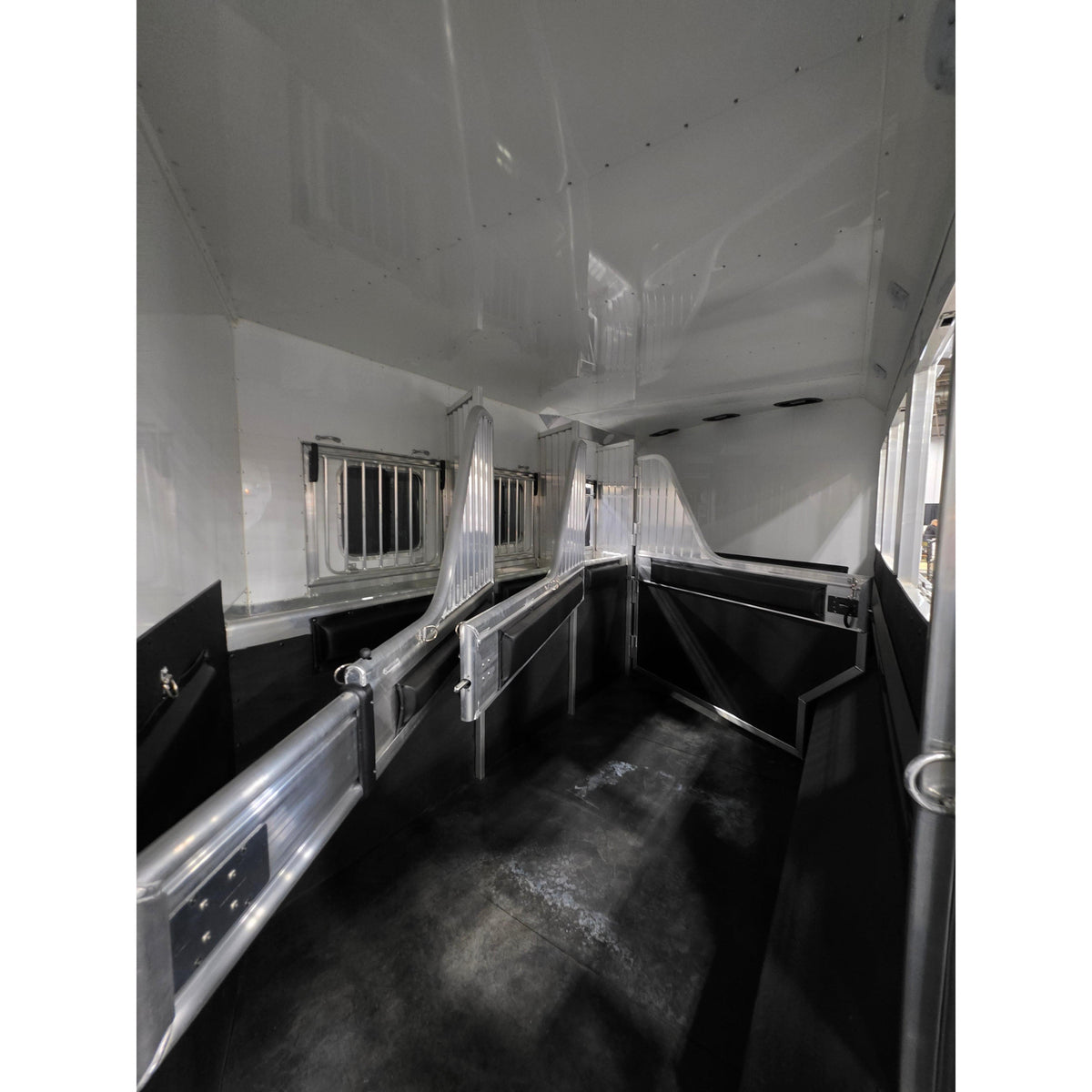

(3) 1/2 Horse Dividers w/ Pads - 1st Divider Full @ Bottom w/ Rubber Both Sides & Telescope Last Divider

 (8) Dome Lights

High Turn Signals

(6) 18" Awning Lights - (1) "Porch" @ Curbside, (2) @ Curbside, (2) @ Streetside, (2) @ Rear Door

(9) Lights Each Top Rail

Permanent Slant Bulkhead Wall to Start 176" B.O.D.

Permanent Slant Rear Tack Wall to Start 342" B.O.D. *Sealed to Roof*

(1) Feed Bag - 1st Stall Only

(8) Outside Tie Rings - (4) Each Side

Padded Chain @ Curbside 4th Stall

(3) Two-Way Roof Vents

Insulate, Line, & Carpet All Walls in Rear Tack & Carpet Rear Tack Doors

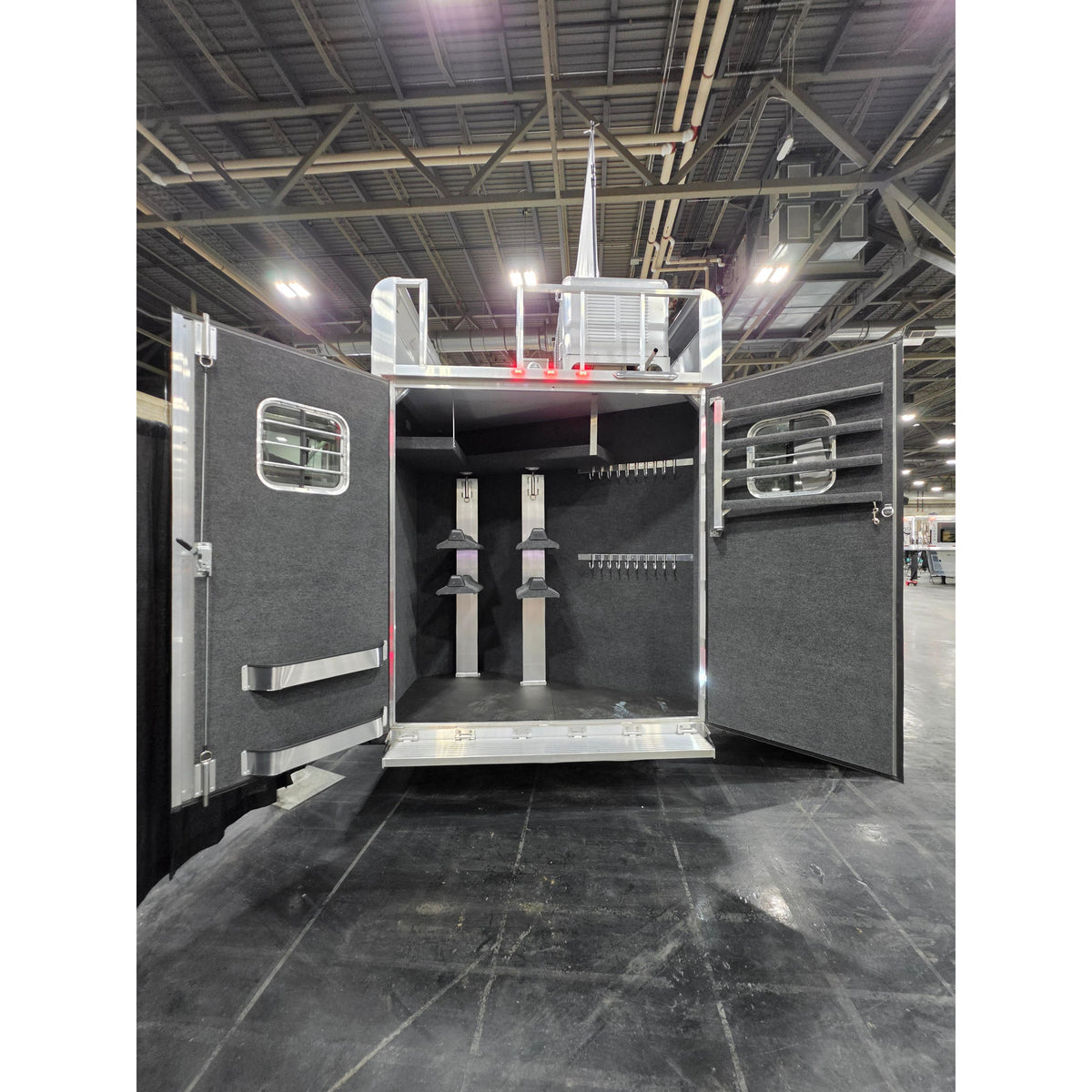

(2) Sets of (2) Saddle Racks on Removable Post @ Streetside Rear Tack

(20) Bridle Hooks @ Rear Tack Wall - (10) High & (10) Low

(4) Swingout Blanket Bars on Curbside Rear Tack Door

(2) Brush Trays @ Curbside Rear Tack Door

Side Load Door (1" Threshold) @ Curbside 4th Stall w/ Drop Down w/ Window

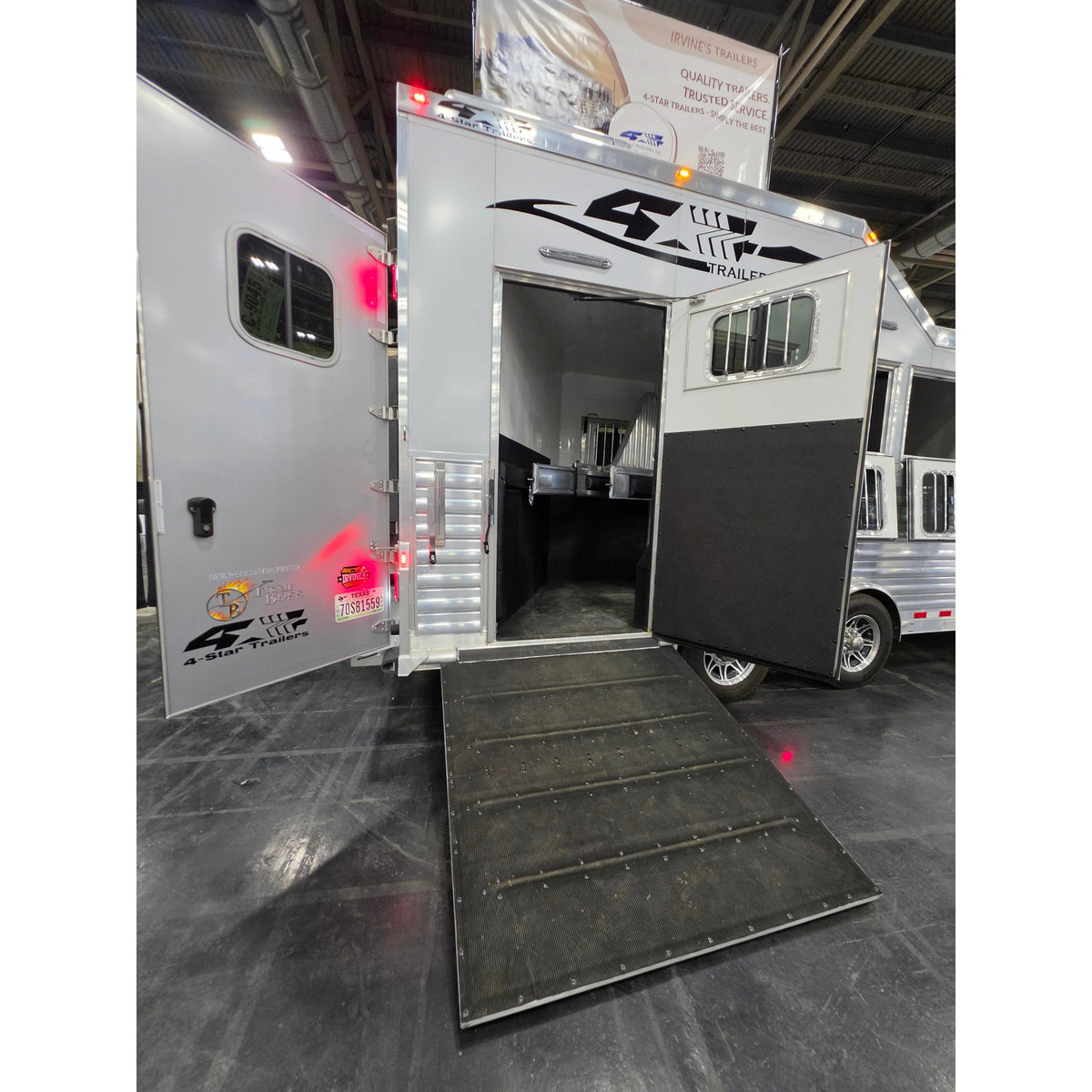

60" Tall x 60" Wide Easy Lift Ramp w/ (4) Traction Bars Spaced Evenly Behind Curbside Side Load Door

(3) 18" Deep Lowered Trough Style Feed Mangers w/ (3) Outside Access Doors @ 2nd, 3rd, & 4th Stall

18" Deep Carpeted Hatshelf to Start @ Streetside Rear of Trailer & Continues Around Rear Tack Wall & Stop 12" Away From Saddle Rack

99" Slide-out @ Streetside to Start 27" B.O.D.

(1) 22" x 48" Frameless Crank-out Window to Start 12" Fr. Slide-out Wall & to Start 38" off Slide-out Floor

(1) 15" x 18" Frameless Picture Window Centered Front End of Slide-out to Start 38" off Slide-out Floor

(1) 15" x 24" Frameless Crack-out Window @ Curbside to Start 79" B.O.D. & 45 1/4" off Floor

Special Roof Framing Curbside: 24" x 24" to Start 174 1/2" B.O.D. & 8" off Curbside Wall

Special Framing Curbside: 16 1/2" Tall x 16 1/2" Wide to Start 75 1/2" B.O.D. & 7" off Floor

(2) 24" Holding Tanks to Start 136" B.O.D.

Roof Air Brace Only: (1) to Start 36" B.O.D. & (1) to Start 100" B.O.D.

Propane Bottle Brackets on 14" Centers - Lowered Toward Streetside

8' Integrated Haypod w/ Regular Generator Box @ Curbside w/ Telescoping Ladder @ Streetside Rear Tack Door

Enclosed Wiring

Fully Enclosed Tail Light Gusset

(2) 10,000lb Torsion Spread 102" Axles w/ Electric Breaks

(5) 235/ 70R17.5 18-Ply West Lakes

17.5 x 6.75 Aluminum Wheels

8 Bolt Hubs

Shipping/Curb/GV Weight (kg) - 4702 KG

G.V.W.R. (kg) - 11700 KG (25,800 LBS)

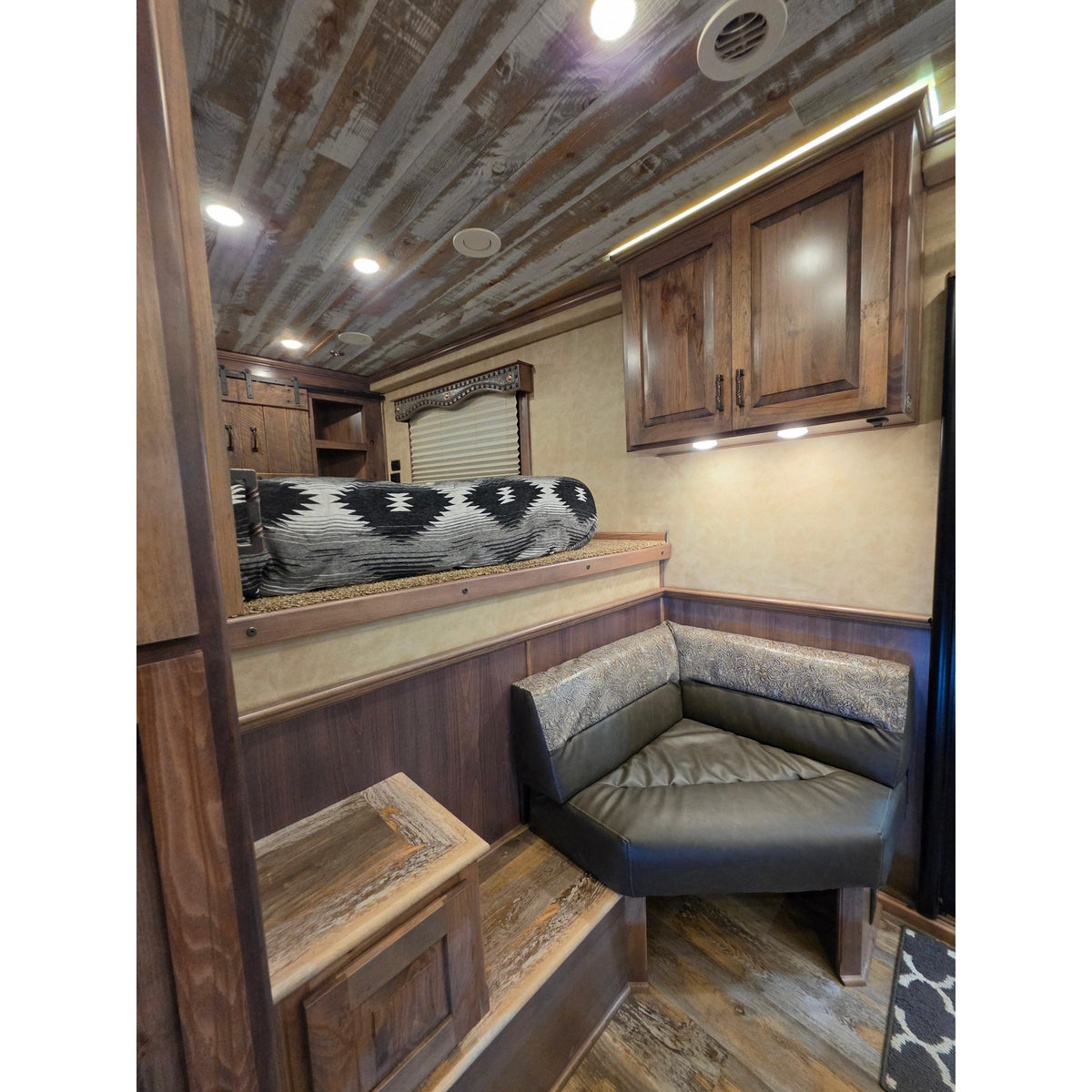

LQ:

Soft Touch Walls w/ Wainscot

Raised Panel Cabinet Doors

Exotic Wood

Tile Backsplash

Quartz Countertop - Flip Up Countertop Extension

Pocket Door

Deluxe Trim Kit for Slide Out Room

Embossed Metal Rosettes On Slide Out Trim

Roll Out Pantry w/ Adjustable Shelves

Roll Out Trash Can

Barn Door Headboard w/ Backlit Shelves

13,500 BTU Roof Top A/C

15,000 BTU Roof Top A/C

A/C Ducted

(2) Wooden Cover for A/C Ceiling Shroud

20,000 BTU Furnace

8 cu ft Refrigerator (12 Volt Only)

1.1 cu ft Microwave

12v Range Hood

Flush Mount 2 Burner Cooktop w/ Glass Lid

Double LP System w/ 30# Tanks

(2) Gauges For LP  Tanks

LP & CO Detector, Fire Ext. & Smoke Detector

Shiplap Ceiling

Backlit Crown Moulding

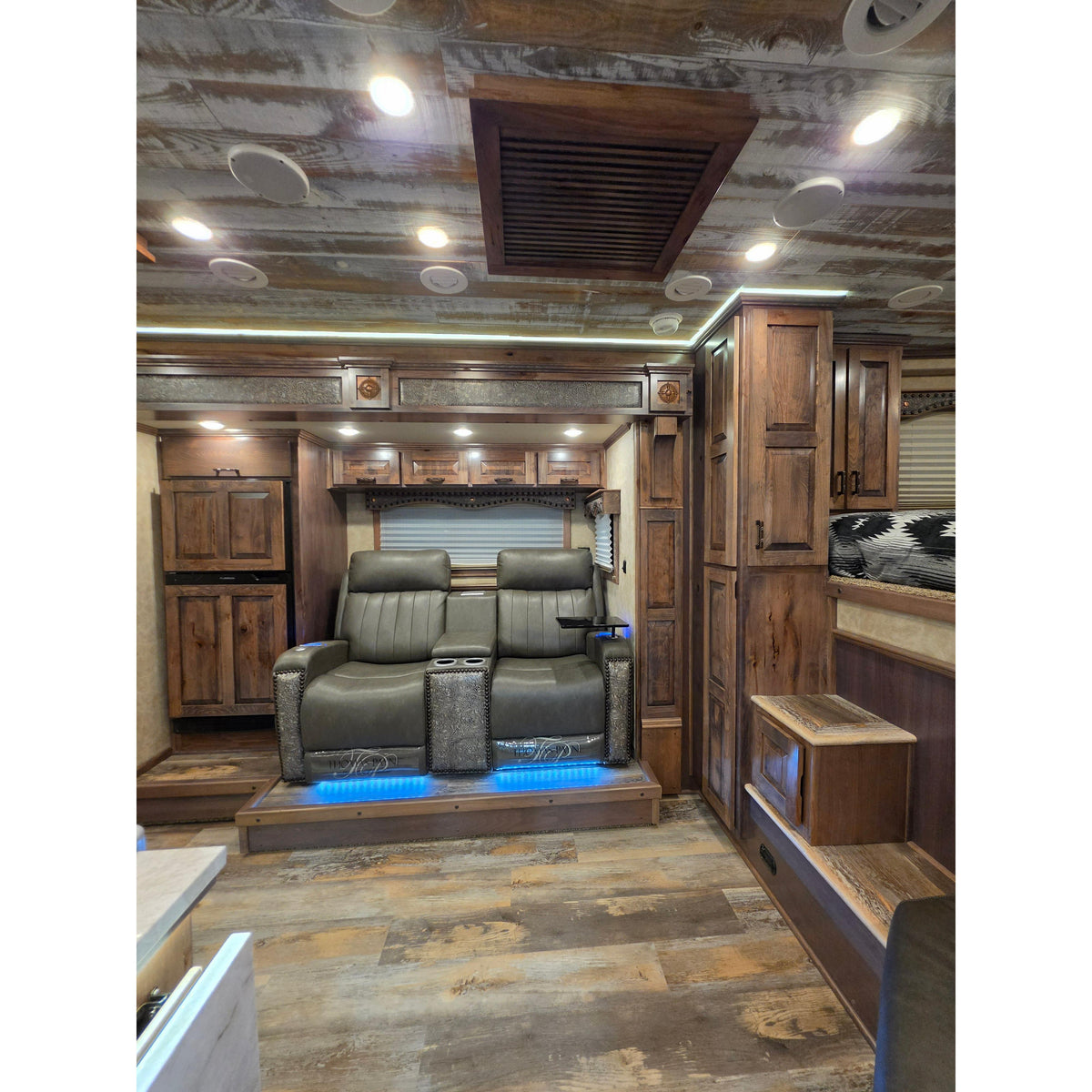

Upgraded to Leather Accents on Theater Seating

Upgraded to Leather on Corner Lounge Yoke Only

Removable Table

TV Antenna

LED TV Cabinet w/ 24" LED TV (Includes prep & mounting hardware)

AM/FM/CD/DVD Stereo w/ Speakers

Exterior Speakers

Upgraded Bath Cabinet Hardware

Full Length Dressing Mirror Recessed in Pocket Door

Upgraded Wood Step Treads

Upgraded Luxury Vinyl Flooring

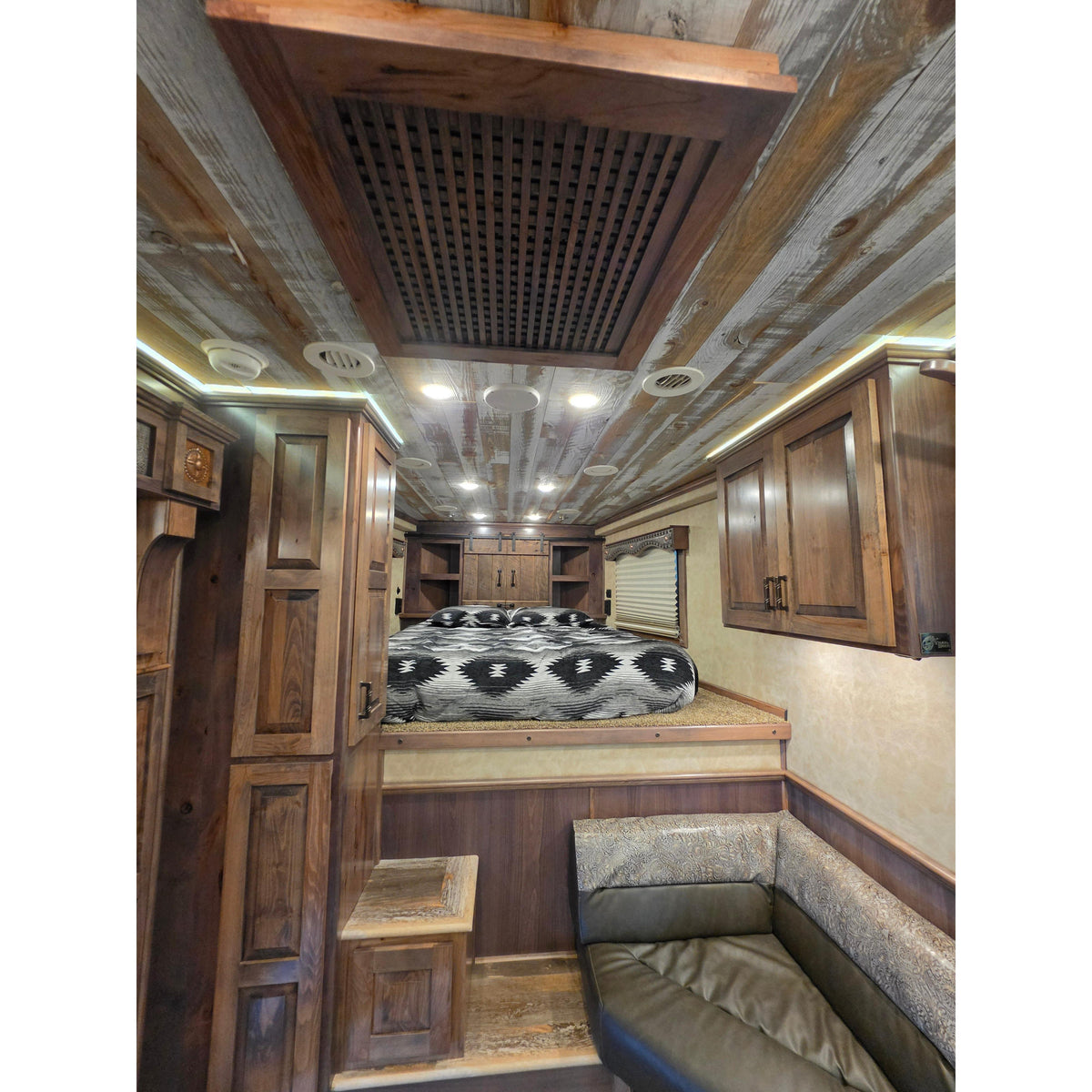

Memory Foam Queen Mattress

(5) Window Frame, (5) Window Shades, (5) Upgraded Valance

Multicolored LED Strip Lights Under Awning

Up To 20' Mirage Armless Awning (Requires Enough Space Above Door)

Slide-out Room Awing

(1) Battery Disconnect Switch

(1) 90Amp Power Converter w/ 30FT RV Cord

(7) 110v GFI Exterior Receptacle

(1) Radiant LED Light Package (12v)

(2) Single Auto Light 12v

(2) Reading Light 12v

Interior LED Strip Lighting

(1) Deluxe LED Exterior Lighted Grab Handle

Backlit Touch Mirror w/ Medicine Cabinet

Skirted Vanity Sink in Copper w/ Faucet

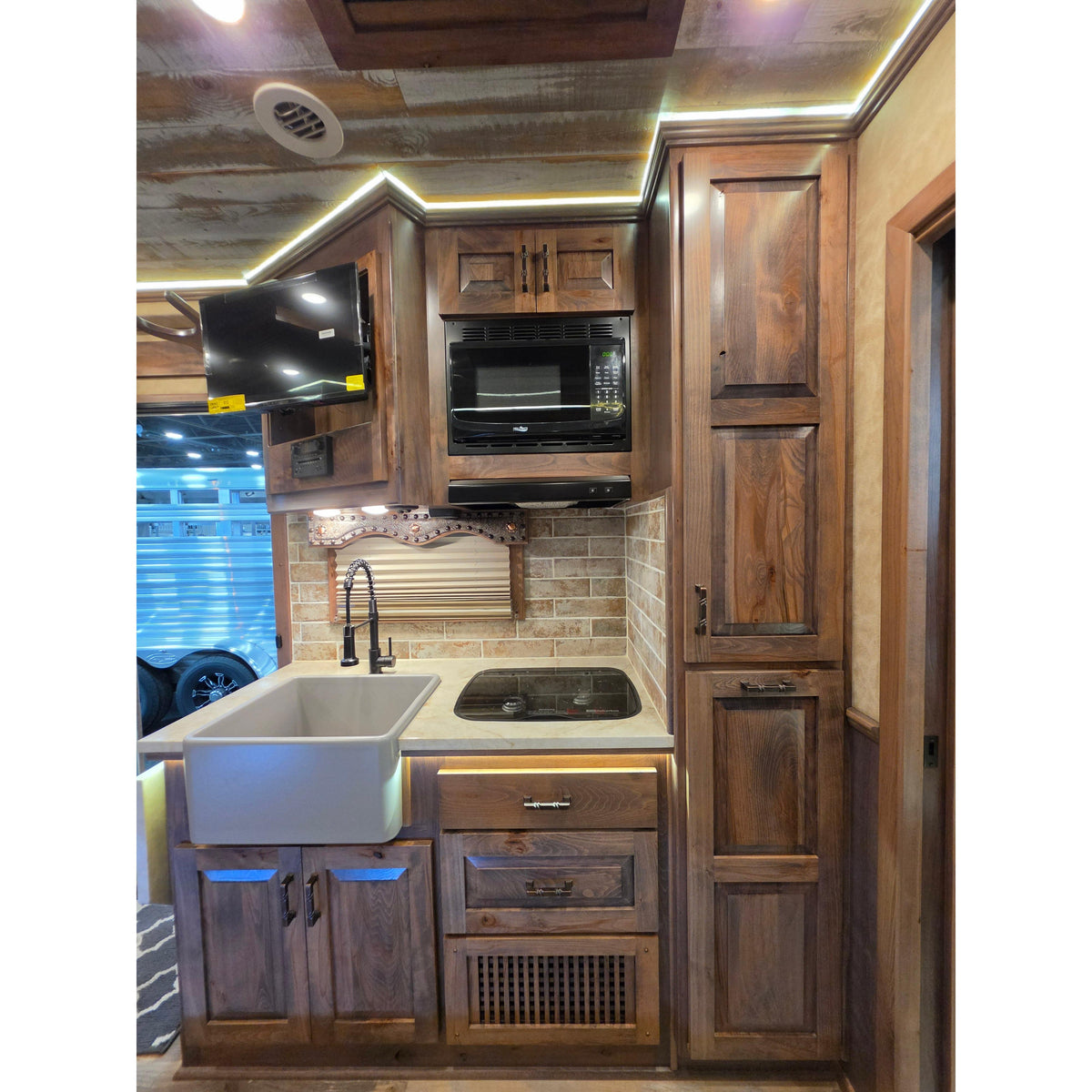

Farmhouse Single Kitchen Grey in White w/ Upgraded Faucet

Water Tank Monitor

(1) 30 gal Fresh Water Tank w/ 12v Water Pump 2.8 GPM

(1) 60 gal Fresh Water Tank (in Hay Pod) w/ 12v Water Pump 2.8 GPM

(1) 30 gal Holding Tank Black / Grey

(1) Sewer Hose & Carrier

(1) 6 gal Hot Water Heater (Gas / Electric)

(1) Exterior Water Faucet

(1) China Bowl Toilet

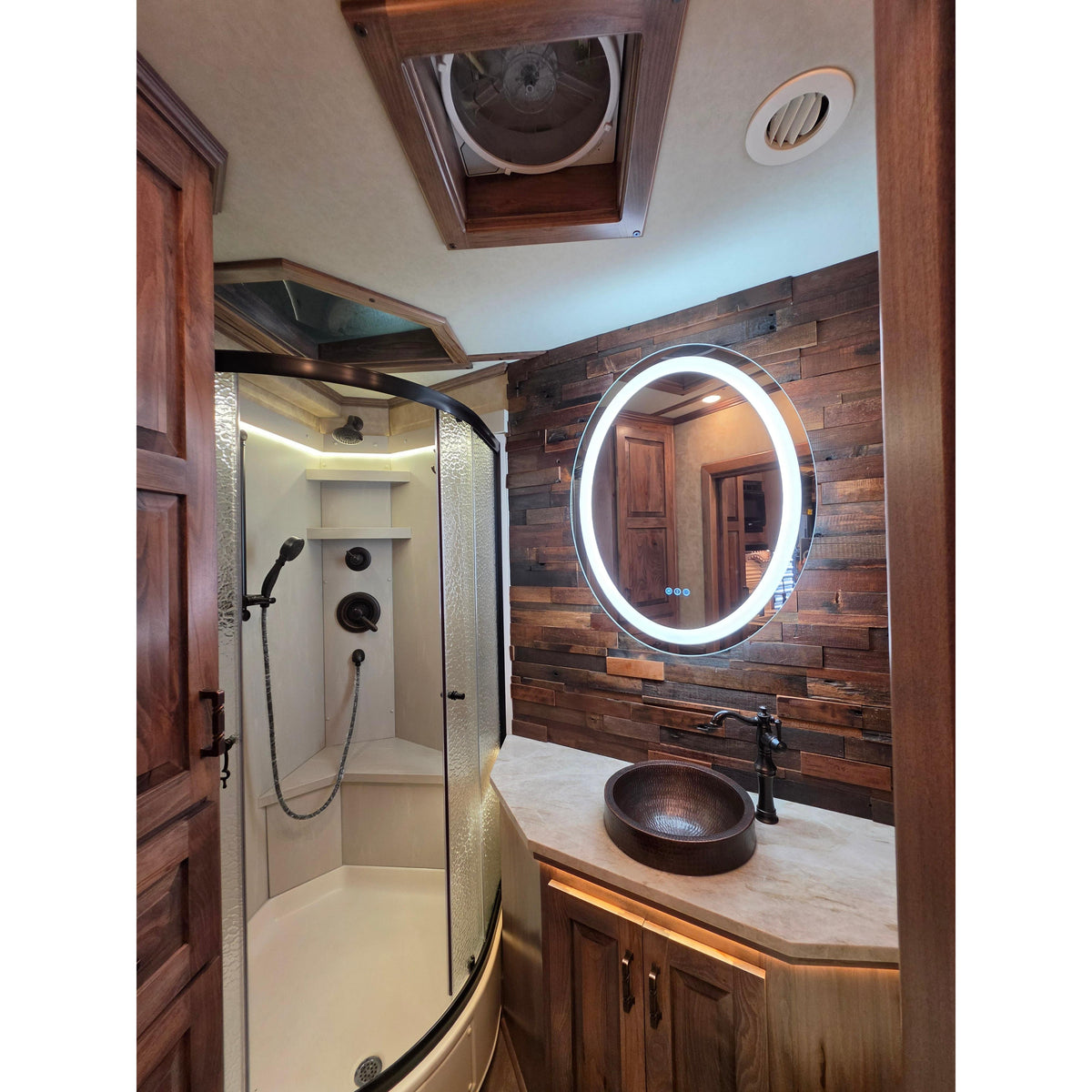

36" Radius Shower w/ Sliding Door

Solid Surface Shower

Upgraded to Residential Shower Head

Skylight Over Shower

Bathroom Fan w/ Power Dome

Roll Up Screen Door

Double Hat Rack

12v RV Battery w/ Isolator For Generator

6.0 Onan Quiet Diesel Generator on Roof w/ Tank
